High Brighting PH10 P12 DIP SMD LED Display Module 160mm X 160mm For Street Advertising

Product Categories
Shenzhen Vios Electronic Technology Co., Ltd
Contact Now

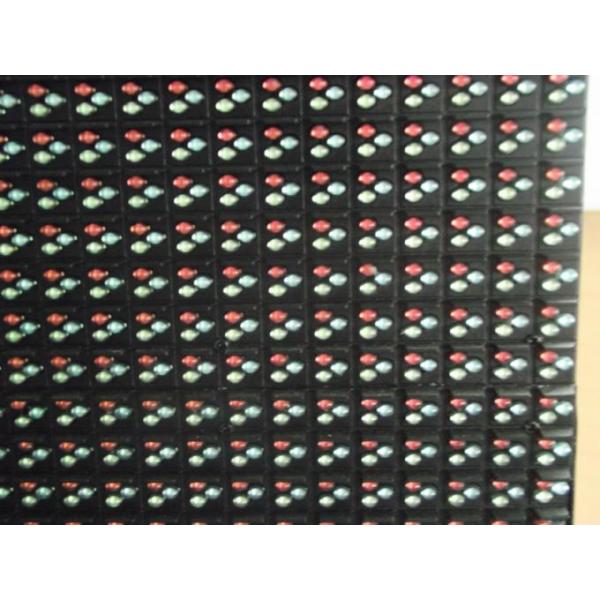

High Brighting PH10 P12 DIP SMD LED Display Module 160mm X 160mm For Street Advertising

  • 1
  • 2

Brand Name : Viso

Model Number : P10 DIP RGB 16 x16

Certification : UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin : China

MOQ : 1 PCS / 1 Unit

Price : 1 PCS / 1 Unit

Supply Ability : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA

Delivery Time : 4-6 work days

Packaging Details : Carton box or Wooden case

LED Package : DIP346 / DIP546

Pixel Density : 10000 Pixel/㎡

Waterproof : IP65

Power Consumption : Max:25W

Brightness : ≥7500cd/sqm

Refresh Frequency : 1920hz

Working Humidity : 20%~90%Rh

Working Voltage : DC5V

Module Resolution : 16*16

Contact Now

Items Parameter
LED Encapsulation DIP 346
Pixel Pitch 10mm
Module Resolution(W*H) 16* 16
Module Size 160*160mm
Pixel Configuration 1R1G1B(3 in1)
Pixel Density 10000 pixel/㎡
Driving Method Static scan
Refresh Frequency ≥1000Hz(Supporting high refresh rate and depending on system configuration)
Driving IC Special constant current IC with high refresh rate and high gray scale
Grey Scale ＞14BIT(According to system and IC equipped)
White Balance Brightness ＞6000cd/㎡
Color Temperature 8000K ± 500(adjustable)
Viewing Angle Horizontal Angle 100° Vertical Angle 50°
Optimal Viewing Distance ＞10m
Working Voltage DC4.2V
Max Power Consumption 15W/pcs(White Balance)
Avg Power Consumption 8W/pcs(Normal Working)
Lifetime 50000 Hours
Operating Temperature -10℃ ~50℃
Weight 0.6kg/pcs


1.Specification of Outdoor led module/led display module

Outdoor LED module
LED Module pixel pitch Pixel Configuration Module Resolution Module Pixles Module Size(mm)
P8 8mm 1R1G1B 32*16 512 256*128
P10 10mm 1R1G1B 16*16 256 160*160
P12 12mm 1R1G1B 16*16 256 192*192
P16 16mm 1R1G1B 16*16/20*20 256/400 256*256/320*320
P16 16mm 2R1G1B 16*16/16*8 256/128 256*256/256*128
P20 20mm 1R1G1B/2R1G1B 16*8 128 320*160

2.Specification of Indoor led module/led display module

Indoor LED module
LED Module pixel pitch Pixel Configuration Module Resolution Module Pixles Module Size(mm)
P3 3mm SMD 3 in 1 64*32 2048 192*96
P4 4mm SMD 3 in 1 32*32 1024 128*128
P5 5mm SMD 3 in 1 32*32 1024 160*160
P6 6mm SMD 3 in 1 32*16/32*32 512/1024 192*96/192*192
P7.62 7.62mm SMD 3 in 1 32*16 512 244*122
P8 8mm SMD 3 in 1 32*16 512 256*128
P10 10mm SMD 3 in 1 32*16 512 320*160
P12 12mm SMD 3 in 1 32*16 512 384*192
P12.5 12.5mm SMD 3 in 1 32*16 512 400*200
P16 16mm SMD 3 in 1 16*16 256 256*256
P20 20mm SMD 3 in 1 16*16 256 320*320

High brighting PH10 P12 DIP SMD Led Module 160mm X 160mm Used For Street Advertising Billboard Signs

High Brighting PH10 P12 DIP SMD LED Display Module 160mm X 160mm For Street AdvertisingHigh Brighting PH10 P12 DIP SMD LED Display Module 160mm X 160mm For Street Advertising
